Features:
Small size, light weight, high power density, suitable for product miniaturization. Excellent EMC / EMI anti-jamming performance.
High frequency loss, low temperature rise, suitable for power 5 ~ 400W, lead to convenient, easy to meet the "safety regulations" requirements.
Role: power conversion, energy storage, filtering, isolation, impedance matching, signal transmission.
Uses: charging pile power, solar power, wind power, car power, switching power supply, UPS / EPS inverter, inverter welding machine, household appliances, communications equipment, medical equipment, audio / video equipment, green lighting equipment.

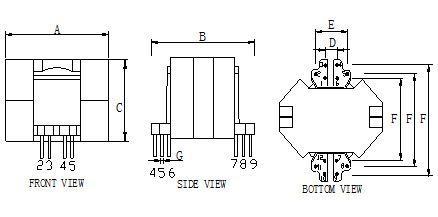

| model | The finished product size (mm) | Conventional frame size (mm) | Ae: core cross-section was | ||||||||
| A length of | B width | C height | installation | Stitch count | D pin pitch | E pin pitch | F row spacing | G needle diameter | Winding groove width | ||
| RM4 10.75/10.5/4.5 | 12 | 14 | 12 | V | 3 + 3 | 1.8 | 7.2/10.8 | 0.45 | 5.7 | 13.4 | |
| RM5 14.3/10.5/6.6 | 15 | 17 | 11 | V | 3 + 3 | 1.8 | 10.8/14.4 | 0.5 | 4.9 | 23.25 | |
| RM6 17.6/12.4/7.9 | 19 | 22 | 13 | V | 3 + 3 | 1.8 | 14.4/18 | 0.5 | 6.4 | 34.21 | |
| RM7 19.9*13.4*7.1 | 21 | 25 | 14 | V | 4 + 4 | 3.6 | 14.3/21.5 | 0.6 | 6.9 | 40 | |
| RM8 22.75/16.4/10.8 | 24 | 26 | 17 | V | 6 + 6 | 3.5 | 7 | 21.6/14.4/18 | 0.6 | 9.3 | 60 |
| RM10 27.8/18.6/13.25 | 29 | 29 | 20 | V | 6 + 6 | 3.6 | 7.2 | 25.3/18.3/21.7 | 0.6 | 10.6 | 96 |
| RM12 36.7/23.7/15.8 | 38 | 40 | 25 | V | 6 + 6 | 3.5 | 10.5 | 35.9/21.55/28.7 | 0.8 | 14.5 | 146 |
| RM14 41.5/31/18.7 | 43 | 43 | 32 | V | 6 + 6 | 7 | 14.3 | 39.5/25.2/32.3 | 0.8 | 18.7 | 198 |
1: According to customer requirements to develop different size products
2: H for horizontal installation, V for vertical installation
