Features:
Small size, light weight, high power density, suitable for product miniaturization. Excellent EMC / EMI anti-jamming performance.
Low-frequency loss, low temperature rise, suitable for energy storage / filtering, lead-out convenient, easy to meet the "safety regulations" requirements of various countries.
Role: Energy storage, filtering, isolation, impedance matching, signal transmission.
Uses: charging pile power, solar power, wind power, car power, switching power supply, UPS / EPS inverter, inverter welding machine, household appliances, communications equipment, medical equipment, audio / video equipment, green lighting equipment.
| Model (bare ring) | Core model | AL value | section/cm2 |
| 26.9*14.5*11.1 | KT106-33 | 40 | 0.659 |
| KT106-34 | 40 | ||
| KT106-35 | 40 | ||
| KT106-38 | 108 | ||
| KT106-40 | 81 | ||
| KT106-45 | 125 | ||
| KT106-52 | 95 | ||
| 26.9*14.5*7.92 | KT106-18A | 49 | 0.461 |
| KT106-26A | 67 | ||
| KT106-40A | 58 | ||
| KT106-52A | 67 | ||
| 26.9*14.5*14.6 | KT106-18B | 91 | 0.858 |
| KT106-19B | 91 | ||
| KT106-26B | 124 | ||
| KT106-40B | 106 | ||
| KT106-52B | 124 | ||
| 31.6*18*7.11 | KT124-26 | 58 | 0.459 |
| 33*19.8*11.1 | KT130-2 | 11 | 0.698 |
| KT130-8 | 35 | ||
| KT130-14 | 14 | ||
| KT130-18 | 58 | ||
| KT130-19 | 58 |
| Model (bare ring) | Core model | AL value | section/cm2 |
| 33*19.8*11.1 | KT130-26 | 81 | 0.698 |
| KT130-28 | 25 | ||
| KT130-30 | 25 | ||
| KT130-33 | 33.5 | ||
| KT130-34 | 33.5 | ||
| KT130-35 | 33.5 | ||
| KT130-38 | 90 | ||
| KT130-40 | 69 | ||
| KT130-45 | 105 | ||
| KT130-52 | 79 | ||
| 33*19.8*5.72 | KT130-26A | 41 | 0.361 |
| KT130-40A | 34 | ||
| 33*16.3*11.1 | KT131-8 | 52.5 | 0.885 |
| KT131-18 | 79 | ||
| KT131-19 | 79 | ||
| KT131-26 | 116 | ||
| KT131-33 | 46.5 | ||
| KT131-34 | 46.5 | ||
| KT131-35 | 46.5 | ||
| KT131-40 | 93 | ||
| KT131-52 | 108 | ||
| 33*17.8*11.1 | KT132-26 | 103 | 0.805 |
| Model (bare ring) | Core model | AL value | section/cm2 |
| 33*17.8*11.1 | KT132-40 | 83 | 0.805 |
| KT132-52 | 95 | ||
| 35.9*22.4*10.5 | KT141-8 | 32 | 0.674 |
| KT141-26 | 75 | ||
| KT141-40 | 60 | ||
| KT141-52 | 69 | ||
| 38.4*21.5*11.1 | KT150-18 | 65 | 0.887 |
| KT150-26 | 96 | ||
| KT150-40 | 78 | ||
| KT150-52 | 89 | ||
| 38.4*21.5*8.26 | KT150-26A | 66 | 0.657 |
| KT150-38A | 74.5 | ||
| KT150-45A | 84 | ||
| 39.9*24.1*14.5 | KT157-2 | 14 | 1.06 |
| KT157-8 | 42 | ||
| KT157-14 | 17.5 | ||
| KT157-18 | 73 | ||
| KT157-19 | 73 | ||
| KT157-26 | 100 | ||
| KT157-28 | 31.5 | ||
| KT157-30 | 31.5 | ||
| KT157-33 | 43.5 |
1: According to customer requirements to develop different size products

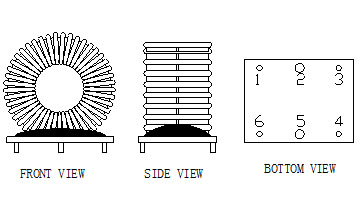

2: H for horizontal installation, V for vertical installation
